README

Français : README.fr.md

PunchOut for Sylius 2: B2B buyers open your shop from their procurement system (SAP Ariba, Coupa, Jaggaer, Oracle…), shop at their own prices and send the cart back to their purchase requisition.

Version 1.1: cXML PunchOut create, edit and inspect, ProfileRequest, purchase orders (OrderRequest) turned into Sylius orders, SAP OCI 5.0 entry, return, VALIDATE and DETAIL, cart transfer and cancel, UNSPSC codes and units, optional tax and shipping, exchange log — with replay protection, rate limiting and iframe support — buyer admin, buyer simulator, retention purge, GDPR erasure and diagnostic command. Specification and roadmap: project-management/.

How it works

1. The procurement system posts a PunchOutSetupRequest to POST /punchout/cxml. The buyer is authenticated by its From / Sender identities and shared secret (stored as an Argon2id hash) and gets a single-use start URL (StartPage).
2. The shopper's browser opens the start URL: they are logged in as the Sylius customer linked to the buyer (their prices and groups apply) in a dedicated cart, isolated from their regular cart.
3. On the cart page, Transfer posts a PunchOutOrderMessage (cXML-base64, target="_top") back to the procurement system: net prices (tax included in the price removed), totals without tax and shipping. Cancel sends the same message without items. The PunchOut session is then closed. During the session the Sylius checkout leads back to the cart: orders are placed in the procurement system.

The setup endpoint never opens a session (no cookie), is rate limited per address (HTTP 429) and refuses replayed requests (same payloadID, or a timestamp outside the replay window). The return URL must be HTTPS and match one of the buyer's allowed domains (deny by default); it is checked at setup time and again before the cart is sent. An open PunchOut session expires after session_lifetime.

Purchase orders (cXML OrderRequest)

Once the requisition is approved, the procurement system can post the purchase order (OrderRequest) to the same endpoint. It is accepted only for buyers with a payment method of purchase orders (e.g. an offline "on account" method; optional shipping method, else the first one available for the delivery address). The order is created as a regular Sylius order (number, stock, e-mails), with the ShipTo / BillTo addresses and the purchase order number in its notes:

• one order per buyer and orderID: a repost — even of the very same document after a timeout — answers 200 with the same order; the same orderID with another content is refused (400);
• an item no longer sold or out of stock, a quantity outside 1 to 9999, a country the channel does not serve, or a net unit price (or currency) different from the purchase order refuses the whole purchase order (cXML 400, lines named): the buyer starts a PunchOut edit again;
• update / delete purchase orders and deploymentMode="test" documents create no order (450);
• at most rate_limits.order_requests new purchase orders per buyer (60 per hour by default).

The order belongs to the buyer's customer, as an authorized customer (not a guest order), so plugins that restrict on-account payment to known customers accept it.

Event. Once the order is committed, Tmonier\SyliusPunchoutCxmlPlugin\Order\PunchoutOrderCreated is dispatched once, carrying purchaseOrderId (the orderID of the buyer's purchase order), the Sylius order and the buyer. A repost or a refused purchase order dispatches nothing. Listen to it instead of reading the order notes. Listeners run synchronously in the request and must not throw: an exception is logged and the cXML answer stays 200, since the order is already committed.

PunchOut carts cannot be completed. A guard on the complete transition of sylius_order_checkout (Symfony Workflow and winzou) refuses to complete a cart opened by a PunchOut session, which closes PATCH /api/v2/shop/orders/{token}/complete. Orders built from an OrderRequest and shop orders are not affected. Limit: with keep_transferred_carts, the retention purge deletes the session and keeps the cart, which is then no longer recognised as a PunchOut cart.

Doctrine. The relations to the Sylius order, customer and channel target OrderInterface, CustomerInterface and ChannelInterface. Sylius resolves them to your model classes (resolve_target_entities is registered by Sylius for its resources): an application that overrides those models needs no entry of its own. Check with bin/console doctrine:schema:validate.

The shared secret of such a buyer can now place orders on account: keep it as safe as a payment credential. See ADR-0008.

SAP OCI

A buyer with the OCI protocol enters with POST https://<shop>/punchout/oci/<buyer code> and the parameters USERNAME, PASSWORD and HOOK_URL (set the HTTP method of the catalog call to POST in SAP). A GET entry is refused (405) unless oci_allow_get: true: it would put the password in the access logs of every proxy on the way and in the browser history. The username is set on the buyer, the password is the buyer secret (same Argon2id hash, rotation and imposed value as a cXML secret); failures are limited like cXML authentications. An OCI buyer never authenticates on the cXML endpoint. HOOK_URL must match the buyer's return domains. The shopper is logged in at once, no start URL.

Transfer posts the OCI 5.0 fields to HOOK_URL: NEW_ITEM-DESCRIPTION (40 characters), QUANTITY, UNIT, PRICE (net), CURRENCY, PRICEUNIT, VENDORMAT, EXT_PRODUCT_ID, the UNSPSC category when the item has one and the full description in NEW_ITEM-LONGTEXT_n:132[]; the ~ fields received at the entry (~OkCode, ~TARGET, ~CALLER) are sent back. The form targets returntarget, else ~TARGET, else _top, in the charset http_content_charset (UTF-8 by default). Cancel sends no item.

OCI functions (same credentials and HOOK_URL): FUNCTION=VALIDATE with PRODUCTID (the EXT_PRODUCT_ID sent by the transfer) and QUANTITY sends the item straight back at the buyer's current price, without opening a session (no item when it is no longer sold); FUNCTION=DETAIL with PRODUCTID opens its product page in a PunchOut session. Other functions (SOURCING, BACKGROUND_SEARCH…) are refused (HTTP 400).

Requisitions, classification and log

• edit rebuilds the cart from the items of the requisition (SupplierPartAuxiliaryID written by the transfer, else SupplierPartID); items no longer sold are left out and reported. inspect shows the requisition read only; going back sends a message without items.
• Each line carries a UNSPSC Classification and a UnitOfMeasure: set them on the product (code and unit) or the taxon (code, inherited by its products and sub-taxons) in the admin; the buyer defines the defaults. Decorate tmonier_punchout.classification.item_classifier to take them from elsewhere.
• The buyer chooses whether the tax and the shipping of the cart are sent.
• PunchOut log (admin): every exchange with its cXML status and the SHA-256 of its body; with log_bodies: true, the body itself, shared secrets removed and e-mail addresses masked.

Screenshots

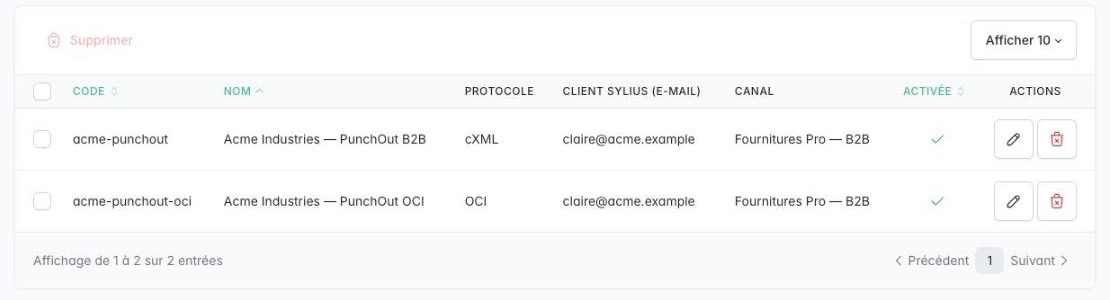

PunchOut buyers in the back office: cXML and OCI buyers linked to a Sylius customer and a channel (table crop of the page)

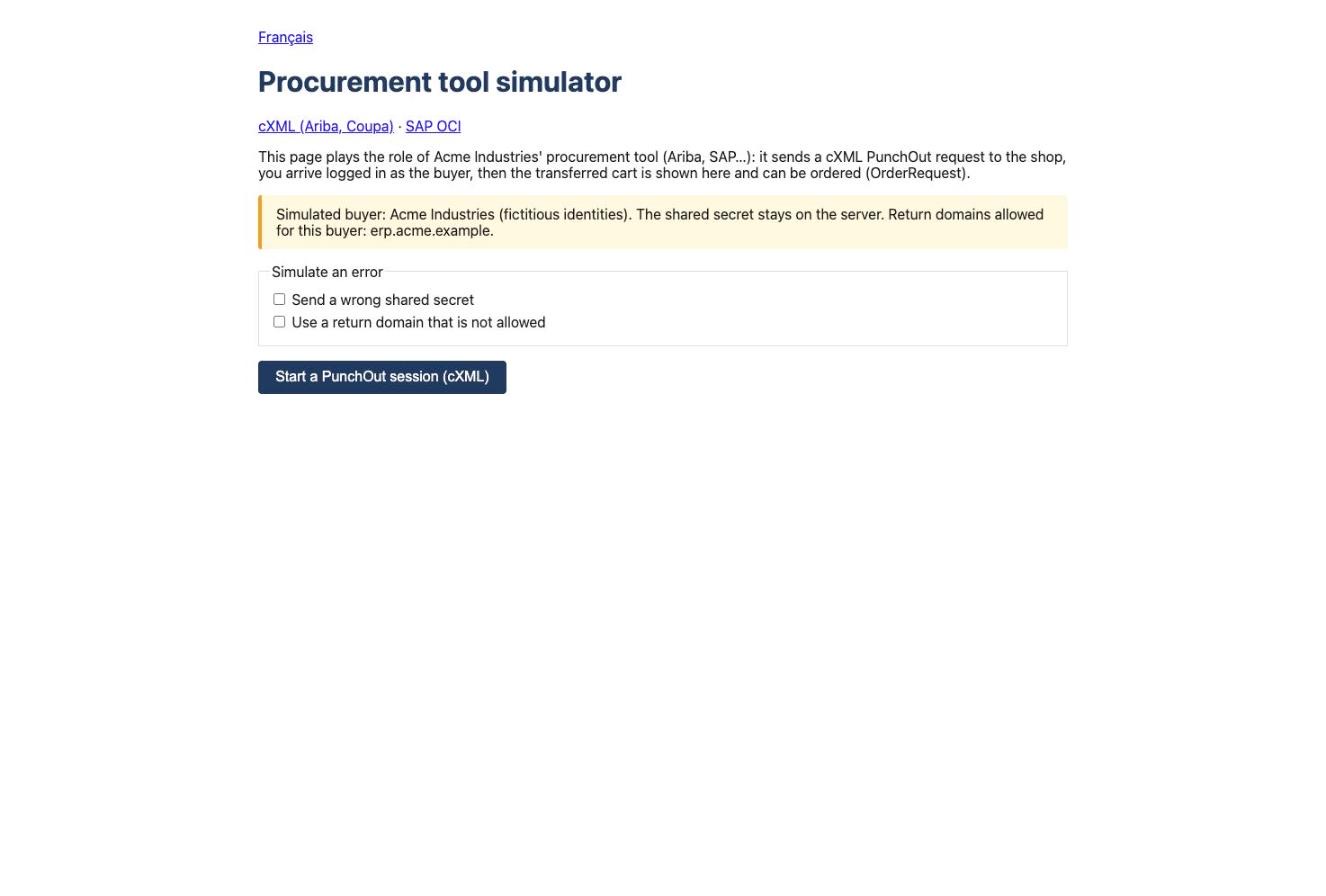

Procurement tool simulator of the demo, from which a PunchOut session is started

Requirements

PHP 8.2+, Sylius 2.2.9+ or 2.3+, Symfony 6.4 / 7.4 / 8, ext-dom, ext-libxml. No third-party cXML library: documents are read and written with DOM (see ADR-0002).

Installation

composer require tmonier/sylius-punchout-cxml-plugin

// config/bundles.php
Tmonier\SyliusPunchoutCxmlPlugin\TmonierSyliusPunchoutCxmlPlugin::class => ['all' => true],

# config/packages/tmonier_punchout.yaml — admin grids, twig hooks and default supplier identity
imports:
    - { resource: "@TmonierSyliusPunchoutCxmlPlugin/config/config.yaml" }

# config/routes/tmonier_punchout.yaml
tmonier_sylius_punchout_cxml:
    resource: "@TmonierSyliusPunchoutCxmlPlugin/config/routes.yaml"

php bin/console doctrine:migrations:migrate

Configuration

# config/packages/tmonier_punchout.yaml
tmonier_sylius_punchout_cxml:
    supplier_identity:               # your identity in the messages sent back (From / Sender)
        domain: '%env(PUNCHOUT_SUPPLIER_DOMAIN)%'      # defaults to NetworkId
        identity: '%env(PUNCHOUT_SUPPLIER_IDENTITY)%'  # defaults to "supplier": set your Ariba Network ID or equivalent
    start_token_ttl: 300             # seconds
    session_lifetime: 28800          # seconds an open PunchOut session lasts
    replay_window: 900               # accepted clock skew of the setup timestamp, in seconds
    max_request_bytes: 262144        # 256 KiB
    max_items_out: 500               # items of a requisition (edit / inspect)
    log_bodies: false                # keep the masked bodies in the PunchOut log
    retention_days: 90               # log entries and sessions kept (tmonier:punchout:purge)
    rate_limits:
        setup: { limit: 30, interval: '1 minute' }                                 # per client address
        authentication_failures: { limit: 10, interval: '1 minute' }               # per identity and address
        authentication_failures_per_identity: { limit: 50, interval: '1 minute' }  # per identity, all addresses: further failures get 429, right credentials still pass
        oci_entry: { limit: 30, interval: '1 minute' }                             # OCI entries per client address
        order_requests: { limit: 60, interval: '1 hour' }                          # new purchase orders per buyer
    keep_transferred_carts: false
    oci_allow_get: false             # accept the OCI entry by GET (not recommended)
    allowed_extrinsics: [UserEmail, UniqueName, CostCenter]

Setting up a buyer

In the admin, PunchOut buyers > Create: code, name, channel, the Sylius customer the sessions log in as (mandatory), for an OCI buyer its username, for a cXML buyer its From and Sender identities (one domain identity per line, e.g. NetworkId AN01000000001), the allowed return hosts (s1.ariba.com for exactly this host, *.ariba.com for its subdomains; never a public suffix such as *.github.io) and, if the procurement system shows the shop in an iframe, its origins (https://s1.ariba.com).

The shared secret is generated on creation and shown once. Generate a new secret adds one next to the current one (rotation without downtime: at most two are active), then revoke the old one; a secret imposed by the procurement system can be entered instead (16 characters minimum). Give the procurement system your setup URL (https://<shop>/punchout/cxml), your supplier identity and the secret.

Company accounts

With tmonier/sylius-company-accounts-plugin installed, a buyer can be attached to a company: its linked customer must then be an active member of that company (the doctor command reports it when this is no longer true). Without that plugin the company field does not appear.

Console commands

bin/console tmonier:punchout:doctor                 # configuration and buyers check (exit 1 if an enabled buyer cannot be used)
bin/console tmonier:punchout:purge [--dry-run]      # run daily: deletes the log entries and sessions older than retention_days
bin/console tmonier:punchout:erase <email> [--dry-run]

erase removes the personal data of a person from the PunchOut tables: the Extrinsic values of the sessions of the buyers logged in as this Sylius customer or naming the address, and the bodies of their log entries (and of any entry showing the address in its masked form, e.g. c***@bigcorp.example). Rows, dates, types and statuses stay for the statistics. The Sylius customer itself is handled by the shop. Carts kept with keep_transferred_carts are regular Sylius carts: sylius:remove-expired-carts removes them.

Behind a proxy or a load balancer

The setup rate limit is per client address: declare your proxies so that Symfony sees the real address, without trusting more than them (a forged X-Forwarded-For would otherwise bypass it):

# config/packages/framework.yaml
framework:
    trusted_proxies: '10.0.0.0/8'   # your proxies / load balancer only
    trusted_headers: ['x-forwarded-for', 'x-forwarded-proto', 'x-forwarded-host']

Also set framework.trusted_hosts to your shop host names: the URLs returned to the procurement system are built from the request host.

With several application servers, share the rate limiter storage (for example a Redis cache pool for cache.rate_limiter and a Redis lock store), otherwise each server counts on its own.

Iframe (SAP Ariba)

During a PunchOut session only, shop pages may be framed by the buyer's iframe origins (CSP frame-ancestors; X-Frame-Options stays everywhere else). The browser only sends the session cookie to an iframe of another site when it is SameSite=None; Secure, which the application must configure (HTTPS required):

# config/packages/framework.yaml
framework:
    session:
        cookie_samesite: none
        cookie_secure: true

SameSite=None applies to the whole session cookie: the browser no longer withholds it on cross-site requests, so CSRF protection relies on the CSRF tokens only (Sylius and this plugin use them on every state-changing form). Serving the admin on another host or with another session cookie keeps it out of this trade-off.

Development

docker compose up -d mysql mailhog
vendor/bin/phpunit --testsuite unit
vendor/bin/phpunit --testsuite non-unit   # needs the test database and the Sylius fixtures
vendor/bin/phpstan analyse
vendor/bin/ecs check
vendor/bin/rector process --dry-run

Buyer simulator (test application only)

symfony server:start -d --port=8101 --no-tls

1. Admin (http://localhost:8101/admin, sylius / sylius) > PunchOut buyers > Demo PunchOut Buyer > Regenerate the secret, copy it.
2. Open http://localhost:8101/simulator/cxml, paste the secret, send the setup request and follow the start link: you shop as shop@example.com.
3. On the cart page, click Transfer: the simulator shows the PunchOutOrderMessage it received and its validation against the cXML 1.2.071 DTD.

The simulator receives the cart on http://localhost, allowed by the development-only option insecure_return_url_hosts of the test application (keep it empty in production).

The cXML DTD in tests/Resources/dtd/1.2.071/ comes from cxml.org and is only used by the tests, under the cXML.org licence terms.

B2B demo

This plugin is used in the Sylius B2B demo: a Sylius 2.3 shop with fictitious sample data where the B2B plugins work together. The source code, setup and fixtures of the demo are in that repository.

The demo is an example, not a production setup.

License

MIT — see LICENSE.
