README

A drop-in symfony/cache adapter that invalidates a tag in four Redis commands — whether it matches three items or twenty thousand.

Its other half is artigo/cache-stampede. This package keeps an invalidation from being expensive; that one keeps the invalidated items from being recomputed by every server at once. Neither depends on the other — see Use them together.

The problem

RedisTagAwareAdapter keeps a SET per tag. Invalidating one reads that SET and unlinks every member, in a single blocking Lua loop — instant for a handful of items, and a stall when a tag fans out to thousands, during which the single-threaded server is doing nothing else for anybody.

Symfony's other tag adapter, TagAwareAdapter, already invalidates in one command: a version key per tag, deleted by invalidateTags(), compared on read. It pays on the read side instead — the tag versions have to be fetched whenever they were not seen within 150 ms, and on every miss — and it keeps one version key per tag ever written, without a TTL. So Symfony holds two corners of the design space: cheap invalidation with expensive reads, and cheap reads with invalidation that grows with the match count.

This adapter is the third corner — TagAwareAdapter's invalidation cost with RedisTagAwareAdapter's read cost, and storage bounded by one trimmed stream. It keeps no index at all. An invalidation appends one rule to a Redis stream and returns; the work of noticing is left to whoever reads next. Every item is written carrying the stream's last entry id — its watermark — and a read evaluates only the rules newer than that against the item's own tags. A stale item is unlinked by the reader that finds it, and otherwise expires by its TTL.

Nothing accumulates in Redis. Every key here is bounded by its own TTL, save one rules stream per pool that the retention trims. A tag SET is not: an item that expires by its TTL keeps its id in every SET that names it until that tag is next invalidated, and the SETs carry no TTL, so eviction cannot reclaim them either - which is why RedisTagAwareAdapter refuses to run under an allkeys-* policy at all. This adapter runs under one safely: a lost stream is detected, and the items it covered read as a miss.

Ordering is causal rather than clock-based: stream ids are generated by the node that owns the stream and are monotonic, so nothing anywhere compares two clocks.

Installation

composer require artigo/versioned-cache

Usage

It is a drop-in TagAwareAdapterInterface — the same constructor shape as RedisTagAwareAdapter, the same DSNs, the same marshallers.

use Artigo\Cache\Adapter\VersionedRedisTagAwareAdapter;
use Symfony\Component\Cache\Adapter\RedisAdapter;

$pool = new VersionedRedisTagAwareAdapter(
    RedisAdapter::createConnection('redis://127.0.0.1'),
);

$item = $pool->getItem('article-1');
$item->set($article)->tag(['articles', 'front-page']);
$pool->save($item);

$pool->invalidateTags(['articles']);   // four commands, whatever matched
$pool->prune();                        // and the memory back, at your leisure

Invalidating deletes nothing, on purpose: a stale item is unlinked by the reader that finds it. prune() is for the items nobody reads again — it walks the pool, asks the rules the same question a read asks, and unlinks what answers yes. Symfony's cache:pool:prune drives it, so a nightly cron is all it takes. Nothing depends on it: a pool that is never pruned is just as correct, only larger.

Three settings beyond Symfony's:

new VersionedRedisTagAwareAdapter(
    $redis,
    namespace: 'app',
    defaultLifetime: 0,
    marshaller: null,
    rulesRetentionSeconds: 2_592_000,  // 30 days; also the maximum item lifetime
    rulesCacheMs: 1_000,               // 0 for exact reads, at a round trip each
    rulesCache: null,                  // APCu where enabled; any PSR-6 pool; false for none
);

rulesRetentionSeconds is how long invalidation rules are kept, and therefore the longest an item may live: an item must never outlive the rule that made it stale, or it would come back from the dead once that rule is trimmed away. A longer TTL is capped to it, and logged once.

rulesCacheMs is how long a rule set may be reused before it is refreshed. It is the window within which an invalidation becomes visible. A refresh fetches only what was appended since the last one, and a read is judged against the newest rule per tag it carries, so neither the refresh nor the read grows with the length of the log.

rulesCache is where the workers of a server share that rule set, so that a fresh process — every request, under PHP-FPM — adopts it instead of loading the whole stream before its first hit. It is an ApcuAdapter by default where APCu is enabled, any PSR-6 pool you pass otherwise, or false to keep the set per instance. When the set turns stale, one worker is elected to refresh it (a non-blocking flock() on a file, per host, the primitive LockRegistry uses) and the others keep it for that read; on a server whose pool was just emptied, one worker loads the stream and the others wait for it, briefly, instead of loading it too.

Symfony framework

framework.cache.pools can use the adapter once it has an abstract service to build pools from, the way FrameworkBundle defines cache.adapter.redis_tag_aware. The provider may be a DSN; Symfony's own connection factory resolves it.

# config/services.yaml
services:
    cache.adapter.versioned_redis:
        class: Artigo\Cache\Adapter\VersionedRedisTagAwareAdapter
        abstract: true
        arguments:
            - !abstract 'Redis connection service'
            - ''    # namespace
            - 0     # default lifetime
            - '@?cache.default_marshaller'
        calls:
            - [setLogger, ['@?logger']]
        tags:
            - { name: cache.pool, provider: cache.default_redis_provider, clearer: cache.default_clearer, reset: reset }
            - { name: monolog.logger, channel: cache }

# config/packages/cache.yaml
framework:
    cache:
        pools:
            app.articles:
                adapter: cache.adapter.versioned_redis
                provider: 'redis://127.0.0.1'

The three settings beyond Symfony's are the fifth to seventh constructor arguments; add them to arguments to change them. The seventh takes a pool service for the shared rule set, false for none, or nothing for APCu.

Measured, not asserted

benchmarks/bench.php runs this adapter, Symfony's RedisTagAwareAdapter and Symfony's generic TagAwareAdapter (over a RedisAdapter) through the same scenarios. Wall clock is worth only as much as the link it was measured over, so every row carries the commands Redis executed and, where it differs, the socket reads it took to receive them — round trips, in all but name — neither of which moves when the network does.

20 000 items, 18 tags each, Redis 8.8, PHP 8.5, one run on one machine:

Three of those rows are the questions a rule log invites.

What does a long log cost the readers? Ten thousand invalidations land behind a fresh fill, so every item is older than every rule. Eleven commands over twenty thousand reads — one refresh per second, the first carrying the ten thousand rules and the rest carrying nothing — because a refresh fetches only what was appended, and a read is judged against the newest rule per tag rather than against the log. TagAwareAdapter pays for the same log differently: its versions are per tag, so a read whose tags it has not seen within 150 ms fetches them again.

What does a fresh process pay? Under PHP-FPM every request is one. The last two rows re-create the pool every ten reads, behind those ten thousand rules. Sharing the rule set through APCu, a fresh pool adopts a ten-thousand-tag set in about 5 ms and asks Redis for nothing; without sharing it loads the stream: 2 000 more commands, about 25 ms per pool. TagAwareAdapter has no set to lose, but a fresh pool has no known versions either, so every read costs two round trips; RedisTagAwareAdapter holds nothing between requests and pays nothing for a fresh one.

docker compose up -d
php benchmarks/bench.php items=20000
php benchmarks/bench.php items=20000 unique=1

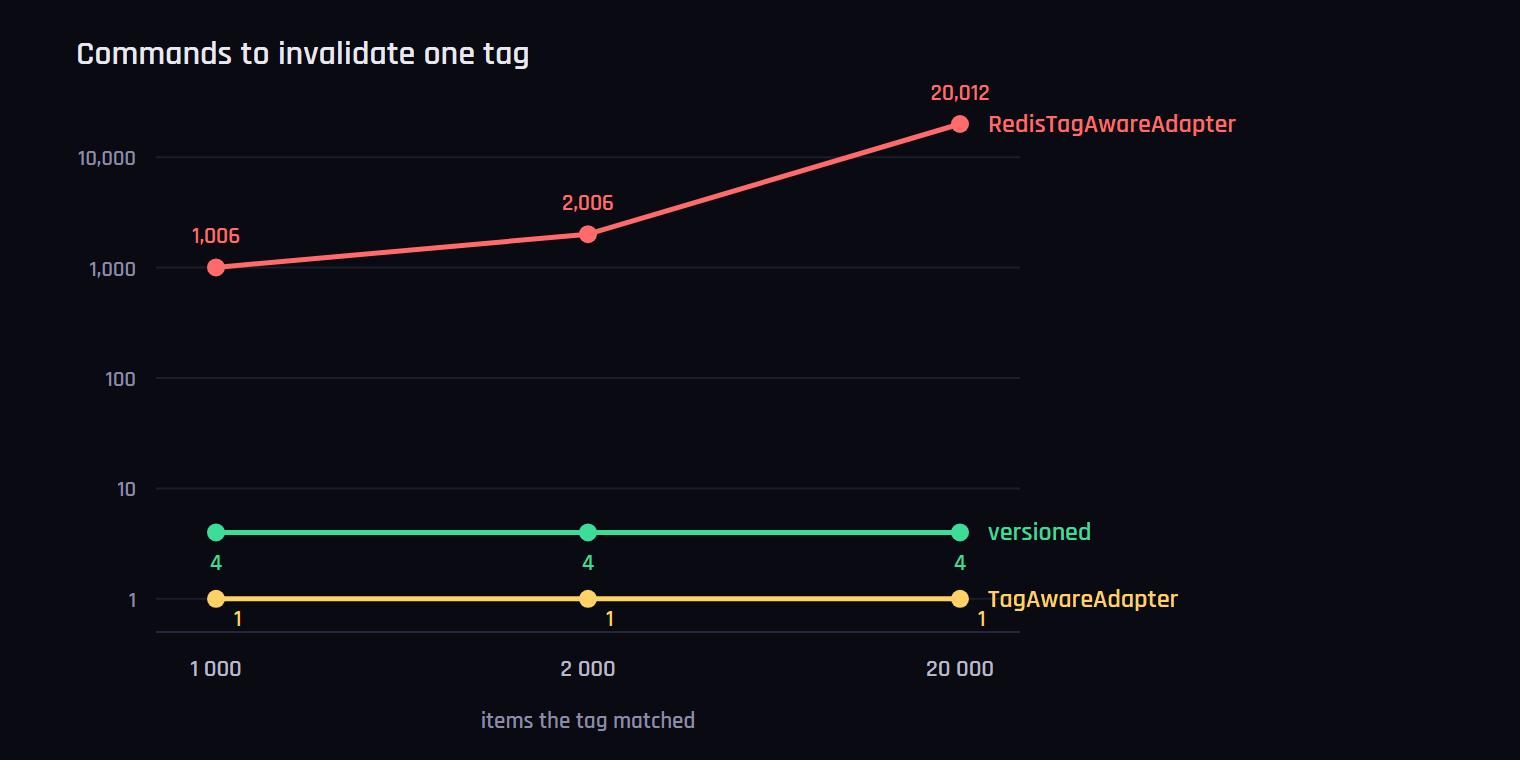

Four commands, always. A thousand matches or twenty thousand, the invalidation is one XADD and a trim. The eager side tracks the match count exactly — 1 006, 2 006, 20 012 — so the distance between them belongs to whoever grows. TagAwareAdapter needs one command, and always did: the difference to it is on the read side.

What each adapter leaves behind

A cache is mostly written to and only sometimes read back, so what the server is still holding afterwards matters as much as what an invalidation cost. The same 20 000 items, with nobody reading them again:

Expiry leaves nothing here. The tags live inside the item, so when Redis drops the key it drops the last thing that named the tag. A tag SET outlives every item in it: all 360 000 of those members point at keys that no longer exist, and the SETs carry no TTL, so no eviction policy reclaims them either. They are cleaned when the tag is next invalidated, or by the prune() RedisTagAwareAdapter gains in Symfony 8.2 (#65353) — not in the 8.1 the run above used, hence the dash. TagAwareAdapter writes one version key per tag ever used, also without a TTL, and has no way to collect them at all.

Invalidation is the other way round. The eager walk deleted the items as it went, which is what its 20 012 commands bought; here they are still there, waiting for a reader or a prune. That is the bargain this adapter makes, and prune() is the way out of the case where it is a poor one: 20 000 items back in 0.217 s and 123 round trips, because the judgement happens in the process and only the unlinks go to the server. TagAwareAdapter is Pruneable too, but forwards to its inner pool, which a Redis pool is not, so nothing happens.

With a tag of its own on every item

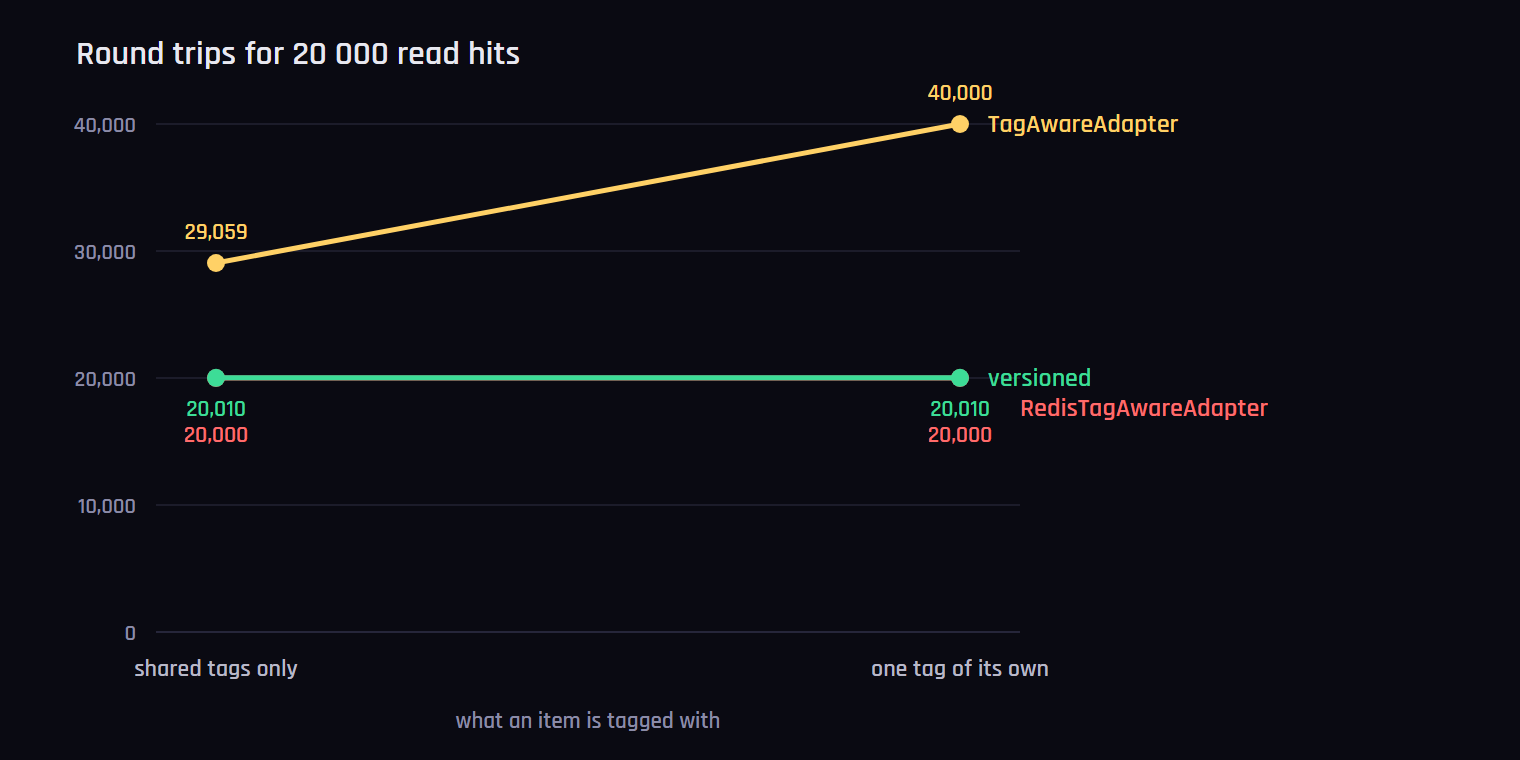

The tags applications really use include one per entity — article-42 — which no other item shares and no per-tag cache can have warmed. The same run with one of the 18 tags being the item's own (unique=1):

Two round trips per read, hit or miss, is the cost of keeping the versions next to the tags rather than the rules next to the pool. The rule log's read side does not move between the two runs.

What it is worse at

Every cache trades something, and two rows of that table are the price.

• Memory comes back lazily. An invalidated item holds its RAM until a reader unlinks it or its TTL runs out, so reading a fully invalidated set costs 2× — 40 019 commands against 20 000. For the items nobody reads again, prune() is the way out: it walks the pool and unlinks what the rules have already invalidated, and cache:pool:prune drives it.
• The rules stream must not be evicted. Like Symfony's tag Sets it carries no TTL, so that volatile-* and noeviction never touch it — run one of those. Under allkeys-* it can go; the read path then fails safe, and an item stamped with a rule the stream no longer remembers reads as a miss rather than a stale hit, at the price of recomputing the pool once.
• Overwriting an existing item costs half again the commands — 60 010 against 40 000 — in the same single round trip: the write is an HSETEX and a PEXPIRE where Symfony's is one SETEX, because the item's watermark has to be rewritten whether its tags changed or not. On a first fill the position reverses, there being no tag index to build.
• An invalidation becomes visible within rulesCacheMs, one second by default. Pass 0 for exact reads, at a round trip each.
• The rule set has to live somewhere between requests. Without APCu and without a pool passed as rulesCache, every request loads the rules of the whole retention window before its first hit — about a hundred bytes per rule on the wire, so a month of invalidations, per request.
• No tag index to inspect. Symfony's tag-aware API has no enumeration method, so nothing public goes missing. What goes missing is the ability to ask the server which items a tag names - SMEMBERS on a tag SET, with RedisTagAwareAdapter - which is occasionally worth having when debugging, and which anything built on that index would need.
• rulesRetentionSeconds is a ceiling on item lifetime, not only a default.

Conformance

Not our tests: AdapterTestCase and TagAwareTestTrait, the suite RedisTagAwareAdapter itself has to pass, plus the PHP-FIG cache group's SimpleCacheTest through Symfony's Psr16Cache bridge.

The skip is testPrune, which sleeps its way through four expiry deadlines to watch a pool collect what has expired. Redis does that by itself, which is why Symfony's own Redis adapters skip it too - RedisTagAwareAdapter's 8.2 test puts it in one line: "Redis expires items by itself, prune() only garbage-collects tag Sets". This pool is Pruneable, for the other reason: prune() unlinks the items a rule has invalidated and nobody has read since. That is ours to prove, and PruneTest does - including that it keeps an item written after the rule, stays inside its own namespace, and deletes nothing at all when the rules cannot be read.

The rest of the suite is ours, and it breaks Redis on purpose: a rules stream that cannot be read, a pipeline that never comes back, a stream deleted under a running process, a client that serializes on its own. Each has to degrade to a miss or a refusal, never to a stale hit and never to an exception in the request.

Use them together

The two packages answer the two halves of the same bad afternoon. Invalidate a tag matching twenty thousand items and this adapter does it in four commands — and then twenty thousand items are cold at once, and every server you have starts recomputing them in parallel. That second part is what artigo/cache-stampede is for.

composer require artigo/versioned-cache artigo/cache-stampede

use Artigo\Cache\Adapter\VersionedRedisTagAwareAdapter;
use Artigo\Cache\MemoLock;
use Symfony\Component\Cache\Adapter\RedisAdapter;

$redis = RedisAdapter::createConnection('redis://127.0.0.1');

$pool = new VersionedRedisTagAwareAdapter($redis);
$pool->setCallbackWrapper(MemoLock::fromDsn('redis://127.0.0.1'));

Neither requires the other: this adapter runs under Symfony's own LockRegistry, and those locks improve any Symfony pool. But an O(1) invalidation and a herd that arrives one request at a time are the same problem seen from both ends, and most setups want both dealt with.

Tags declared inside a locked callback still reach the item and still invalidate — which is not obvious, since the lock wraps the very callback that declares them, so VersionedWithMemoLockTest checks it here.

A worked example is in the repository, and it runs:

docker compose up -d
php examples/together.php

examples/together.php warms a handful of tagged cards, reads them back as hits, invalidates the tag they share, and reads them again — printing how often the origin was actually reached at each step. What the lock adds cannot show in one process, since a single request cannot stampede itself; benchmarks/stampede.php in artigo/cache-stampede releases twelve real ones at the same cold key for that.

Requirements

PHP 8.2+ · symfony/cache 6.4, 7.x or 8.x · Redis 8.0+ · ext-apcu recommended under PHP-FPM, for the shared rule set (see rulesCache)

Redis 8 is what makes the write path a single command: HSETEX sets an item's fields and their expiry together, so there is no script on the write path and no way for the data to land without the TTL that keeps it from outliving the rules. The one script left is the appended rule — it needs the id XADD just generated — and it travels as a body, so a SCRIPT FLUSH, restart or failover changes nothing and no FUNCTION LOAD is ever needed. The key is given the same TTL as its fields, so a volatile-* eviction policy still sees it.

Clients: ext-redis or Relay. Standalone or cluster — every command the adapter issues touches a single key, so three masters are no different from one. CI runs the suite on PHP 8.2 to 8.5 against Symfony 6.4, 7.4 and 8.1, on Redis 8.0 and the current 8.x, through Relay, and against a three-master cluster.

Benchmarks

The suite ships in this repository, so every number above is something you can re-run rather than take on trust:

unique=1 gives every item one tag of its own, the entity tag applications really use; fresh=N re-creates the pool every N reads in the FPM rows, the way a request is a fresh process; stores= picks from versioned, symfony (RedisTagAwareAdapter) and tagaware (TagAwareAdapter over a RedisAdapter).

The stampede benchmark moved to artigo/cache-stampede with the locks it measures.

Licence

MIT. See LICENSE.
